Product Features
- High-definition mega night vision lens, 1080P high-resolution screen, clear and delicate images.
- WiFi connection, simple operation, wireless smart connection, no wiring, power-on and drawing.
- With its own hotspot connection, it can quickly and normally check and replay video without internet.
- The focal length is 3.6mm, the ultra-clear lens, the daytime visibility is 30 meters, and the night vision is 10 meters.
- Support cloud storage and local TF card video storage to ensure safe storage of video data.
- Professional infrared IR fill light system, wide dynamic backlight technology, never let go of every dynamic.
- Built-in high-sensitivity MIC microphone and super sound speaker, support two-way voice intercom.
- Intelligent motion tracking, motion detection, smart alarm, one-key defense, and someone intruded into the area will be automatically tracked.

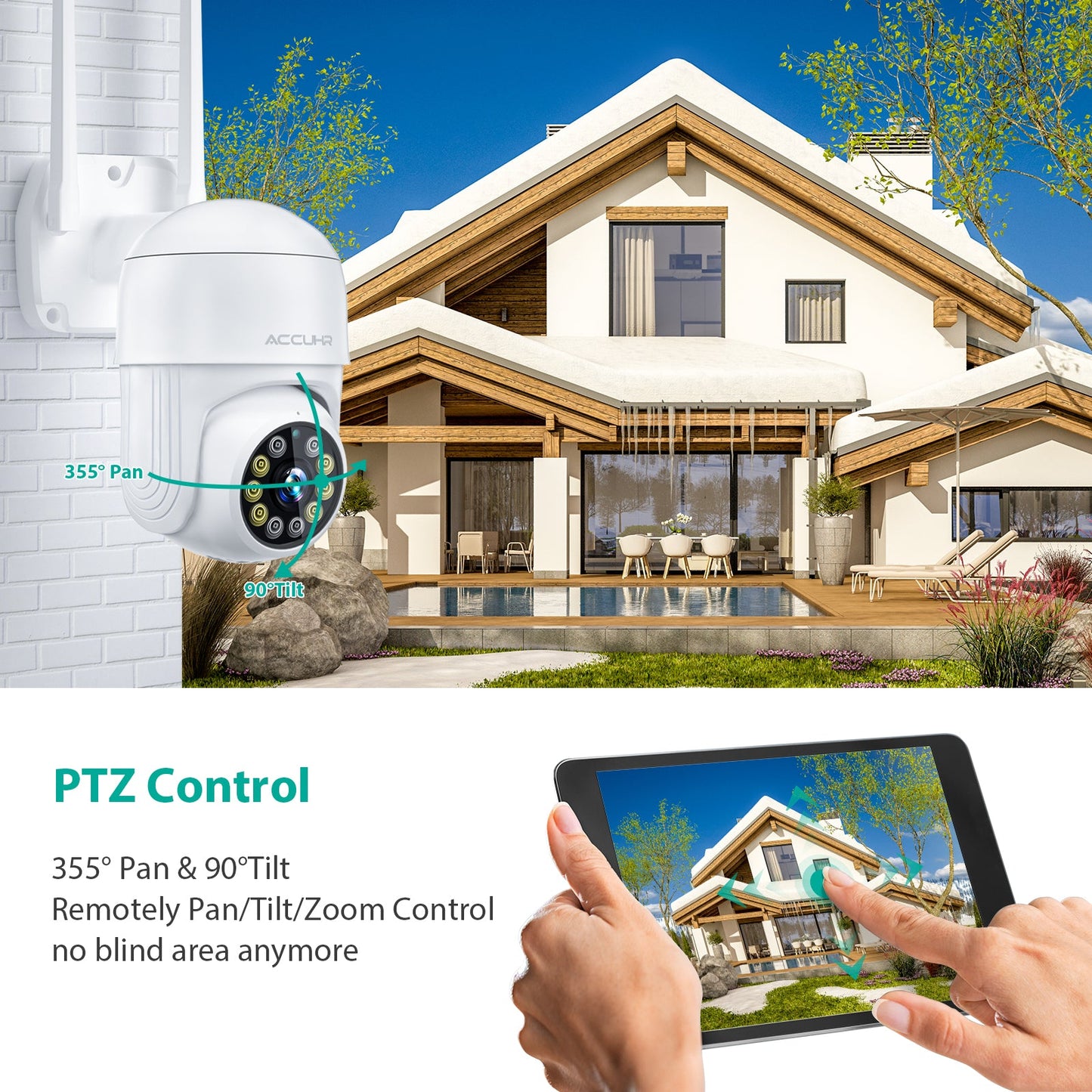

- The smart pan/tilt tracks and rotates, 355 degrees horizontally and 90 degrees vertically.
-
Support mobile phone, computer and other platform applications, PC client remote monitoring, view the live situation anytime and anywhere. Intelligent humanoid detection, filtering false positives, accurately guarding your safety
model
JXJ-Q1B-Y1
Pixel
1080P (200W pixels)
processor
Qigan QG2101-ARM Cortex-A7 800MHz
sensor
Smartsens: 1MP CMOS sensor H63
Number of shots
Fixed lens: 3.6MM super clear lens
operating system
Embedded Linux operating system
Video processing
H.264 video encoding, support dual stream

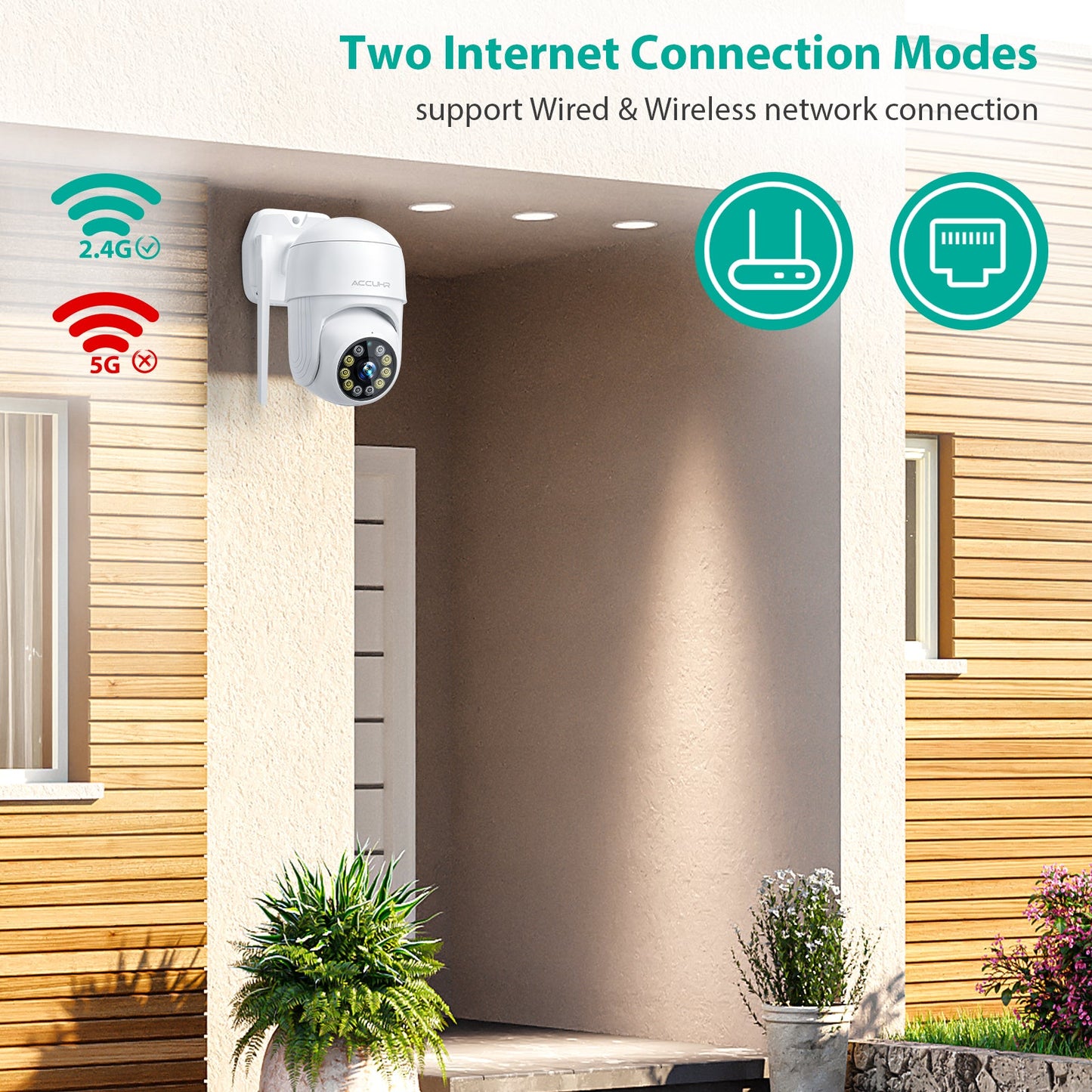

Connection method
Wireless connection, wired link
wireless connection
IEEE 802.11b/g/n; 2.4GHZ support WEP, WPA, WPA2 encryption
Antenna method
External antenna, wired connection
Wired connection
RJ45, 10/100M adaptive
Audio input
Built-in microphone G.711A standard
Audio output
Built-in 1 8 ohm 1W waterproof speaker
PTZ angle
Horizontal 355°Vertical 90°
Preview mode
Full screen, half screen
Video output
1920*1080
Noise reduction
Support 2D/3D noise reduction
Day and night switch
Built-in IR-CUT dual filter
Infrared night vision
4 infrared lamp beads + 6 white light lamp beads = intelligent dual light source
Minimum illumination
Color 0.01Lux@F1.2, black and white 0.001 Lux@F1.2
Wide dynamic
Support digital wide dynamic
Video save
TF card, cloud storage TF compatible with Micro SD card: 8G-128G can be replaced freely
Video mode
Custom recording or all-day recording
Alarm method
APP push machine horn alarm
Motion Detection
Support custom alarm period or all day period
Security
Password mechanism
Body material
Industrial plastic ABS
Infrared distance
Distance 5-10 meters
language support
Support multiple national languages
Phone monitoring
Android Android/Apple IOS/PC computer client
power supply
DC12V2A
temperature
0℃~50℃
Use environment
Indoor use or outdoor use
Compatibility
Support cloud storage function 7*24 hours
Remark
With AP network distribution function, software: Yunyi Internet of Things
This product is suitable for outdoor surveillance, parking surveillance, yard surveillance, pet surveillance, and elderly prisons; and it has excellent image restoration capabilities in environments with large contrast between indoor and outdoor illumination. Application scenario - 1. What are the paid and free functions?
Answer: The free function is motion detection, 6-second alarm event, and 7-day loop recording. If you want to record other longer, you need to pay.
2. Is cloud storage calculated by time or capacity, if it is calculated by capacity, how big is the capacity?
Answer: Cloud storage is calculated by time. You can choose to record in 7 days or 30 days. The charging standard can be 1 month or direct annual subscription.
3. Is night vision only black and white night vision?
The night vision mode depends on the current environment changes, the default automatic mode, if the current environment has lights on, trigger the white light to turn on, it will be in color, if it is a completely black environment, the night vision infrared light is turned on, it will be black and white.
4. It is written on the parameter that it supports multiple languages. Does the shipment also support multiple languages? If it supports, please explain which language it is
Answer: The default voice is only Chinese and English. The language of the APP is based on which country you choose before logging in.
5. Smart motion detection is written on the parameters. We tried it. When people walk over, the camera will not automatically follow it. It can only be rotated by operating the camera in the APP. Whether this is the case, or whether there is a problem with our test.
Answer: Motion detection means that someone has moved, and when triggered, there will be a corresponding alarm. The alarm frequency can be set by yourself. Motion tracking is turned off by default. You need to enable motion tracking in the camera APP settings. Only when someone walks by will automatically track it.
